Industry

Whether for a mine, port, airport, factory, or any other type of industrial or commercial activity, radio communications a critical role in ensuring worker safety and optimizing daily operations.


PowerTrunk’s TETRA solutions provide a cost-effective, mission-critical digital communications network with advanced subscriber units, including with GPS, Bluetooth, and WAP browser, that allow mobile data from work management applications.

pic-29

TETRA delivers:

  • Mission-critical radio functionalities
  • Simultaneous voice and data transmission
  • Cellphone-like communication capabilities

…in a single ruggedized radio.


Mission critical communications boost productivity while keeping workers safe

Business customers manage complex tasks which could mean significant gain or loss of productivity to their organizations. Communication systems need to be operational 24x7 and be able to provide workers the tools to boost performance.

Cellular phones have been found to cause distractions to the workforce, causing accidents, sometimes fatal. PowerTrunk's mission-critical grade HTT-500 TETRA radio fills the gap with additional features included as standard, such as full-duplex private call capability, Bluetooth, and WAP browser for data applications.

Industry Functionality Benefit
Mining Flexible IP architecture Coverage adapts to operational needs
Oil and Gas Data Services SCADA based Telemetry applications
Airport Operations Dynamic Group Number Assignment Flight Oriented Dialing
Hotels & Casinos WAP enabled radios Hotel management applications
Hospitals Hotel management applications Paging capabilities
Manufacturing facilities Bluetooth enabled radios Indoor location for emergency
Campus Full Duplex Private Calls User Friendly and Privacy

PowerTrunk Product Range for Commercial Applications

Mast-Mounted Base Station (MBS)

PowerTrunk‘s Mast-Mounted Base Station (MBS) has been prepared to be easily installed on towers or wall-mounted with minimum cost. Its design does not require an additional unit at the base of the tower. These advantages considerably reduce installation costs, making the MBS a very economic system to deploy.

The MBS is a complete single-carrier TETRA base station. Its main goal is to improve coverage in shadow zones, or for where an indoor base station is not necessary or recommended. Its modular design allows it to be easily upgraded to two TETRA carriers with an additional unit. Furthermore, as the MBS is designed for outdoor operation, the system is able to work under the harshest climatic conditions.

The system includes a complete set of software tools to maintain the unit, even remotely. Intuitive and easy-to-use applications allow the modification of user profiles, system configuration, or monitoring network status from a friendly Graphic User Interface.

Designed for integration with the PowerTrunk-T system, the MBS provides an unrivalled set of TETRA services; unique when compared to any other similar unit.

SC20

Enhanced application capability supports interaction with Bluetooth wireless body-worn accessories, back-end databases and locally stored moving map data while a UNIQUE notification bar gives instant access to five favourite features, indicates missed events, and alerts the user to any changed states, such as speaker mute.

Submersible, waterproof and dustproof, the SC20 radios boast IP66, IP67 and IP68 environmental protection ratings and an easy-clean design, allowing them to be rinsed in running water.

STP8X

Built to withstand the very harshest working conditions, the award-winning STP8X000 delivers unrivalled audio clarity and enhances safety for workers in hazardous environments.

The full-keypad STP8X000 carries an IP67 environmental protection rating - continuing to work after submersion in up to 1m of water for up to 30 minutes.

With long battery life and features such as Man-Down - offering motion- and tilt- monitoring, local alarm and over-the-air alerting - optional Bluetooth and GPS, the STP8X000 significantly enhances worker safety. In addition, hot-swap technology allows Nexus-based headsets to be attached or removed in hazardous areas.

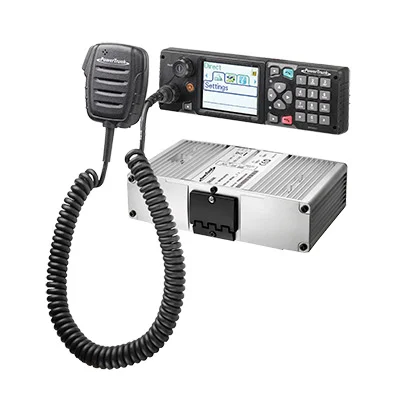

SRG3900

With a class-leading 10 Watts of RF power, and the most proven gateway and repeater technology on the market, the SRG3900 TETRA mobile extends communication into areas otherwise beyond network coverage.

An 8W audio drive provides loud, clear audio and - uniquely - the integral GPS module tracks both GPS satellites and the Glonass satellite network, working with the latest SBAS differential GPS support and CW anti-jamming technology to provide a greater degree of accuracy and security.

Mast Mounted Base Station:
Single Site with full TETRA capabilities

PowerTrunk’s Mast Mounted Base Station (MBS) provides a complete TETRA solution packed in an outdoor housing suitable for deployment in harsh environments such as mining or military deployments. The MBS ensures full TETRA radio functionality and 4 radio channels in a single unit with no need of additional network controllers. Additional capacity can be equipped by adding a second unit.

Whether it is a shadow area or a temporary/ transportable deployment the MBS will satisfy the coverage requirements thanks to its 10W output power and built in 2 receiver diversity.

The MBS design enables direct pole mounting, building or tower installation, reducing feeder losses and installation costs

As part of the PowerTrunt-T architecture the MBS can be fully integrated into a larger network deployment avoiding the need to deploy a full Base Station Site for geographically small or low traffic density areas ensuring that capital and operational costs and kept to an absolute minimum.


Summary

Scalable IP-based architecture

PowerTrunk TETRA IP-based architecture provides scalable system architecture from single site to nationwide. This means that cost of ownership will grow linearly with capacity needs without a significant initial investment. The IP-based design also allows to freely distribute redundant modules in different cabinets (with different power supply units and batteries) increasing even more the resilience against failures.

Mission Critical Design

TETRA was designed as a mission critical digital radio standard and therefore its architecture incorporates no-single-point-of-failure redundancy configurations while the subscriber radios add emergency features such, Man Down and Emergency Call with automated GPS transmission.

Voice & Data

TETRA provides group calls, private calls, broadcast calls, emergency calls...for voice communications while integrating in the same network narrowband data capabilities that can handle information such as GPS and telemetry. A single network for voice and critical data will cut investment and operational costs.

Flint Hills Pine Bend Refinery

Flint Hills Resources is an industry leader in refining, chemicals, and biofuels. Its Pine Bend Refinery located in Rosemount, MN has a radio user population of approximately 4,000 units.

The refinery is the largest in Minnesota and covers approximately 700 acres, with a capacity of 320,000 barrels per day.


Read the full case study

Agnico Eagle Mines

Mining for gold in the Canadian arctic is a challenge not to be taken lightly, but one such company which is defying the odds is Agnico Eagle Mines Limited (Agnico), a Canadian-based gold producer with operations in Canada, Finland, and Mexico, and exploration and development activities extending to the United States and Sweden.


Read the full case study
